ISO/IEC 10918-1 : 1993(E)
TISO1040-93/d041
Code_LPS(S)
A = A ­ Qe(S)
Yes
No
A < Qe(S)
?
C = C + A
A = Qe(S)
Estimate_Qe(S)_after_LPS
Renorm_e
Done

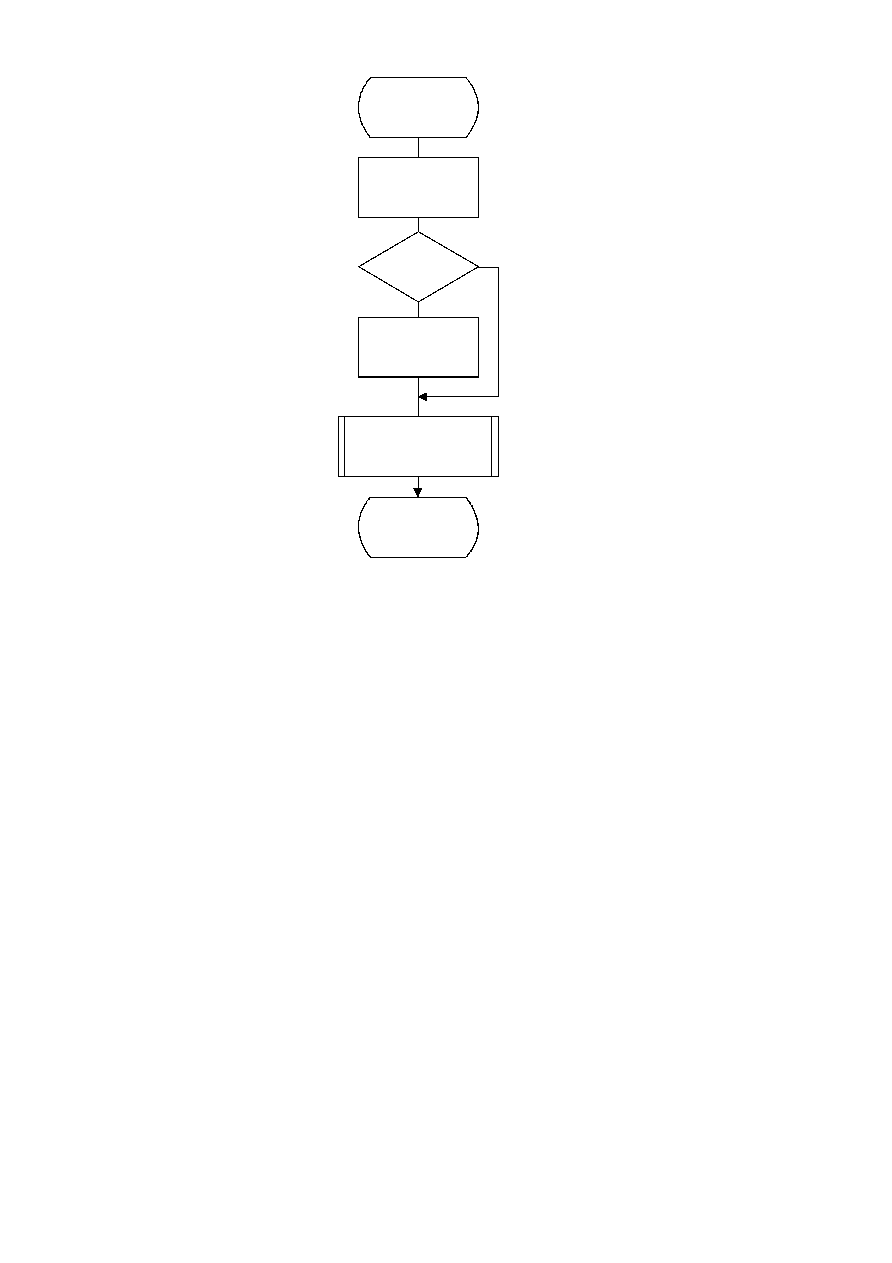

Figure D.3 ­ Code_LPS(S) procedure with conditional MPS/LPS exchange
Figure D.3 [D41], = 13.5 cm = 528.%
58
CCITT Rec. T.81 (1992 E)
