ISO/IEC 10918-1 : 1993(E)
TISO1400-93/d078
Encode_log2_Sz
M = 1
Sz < M
?
Yes
No
Code_1(S)
M = 2
S = X1
Sz < M
?
Yes
No
Code_1(S)
M = 4
S = X2
Sz < M
?
Yes
No
Code_1(S)
Code_0(S)
M = SLL M 1
S = S + 1
M = SRL M 1
Done

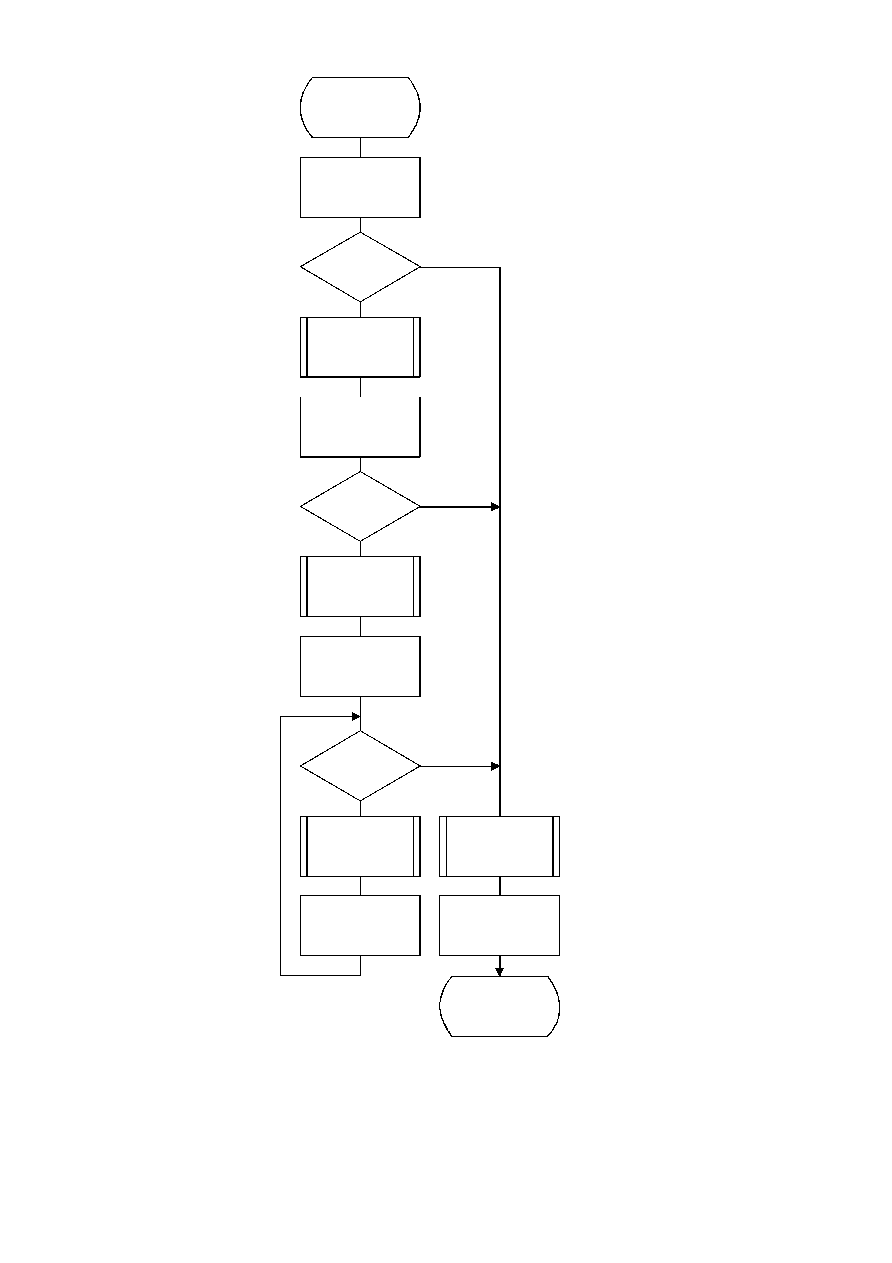

Figure F.8 ­ Decision sequence to establish the magnitude category
